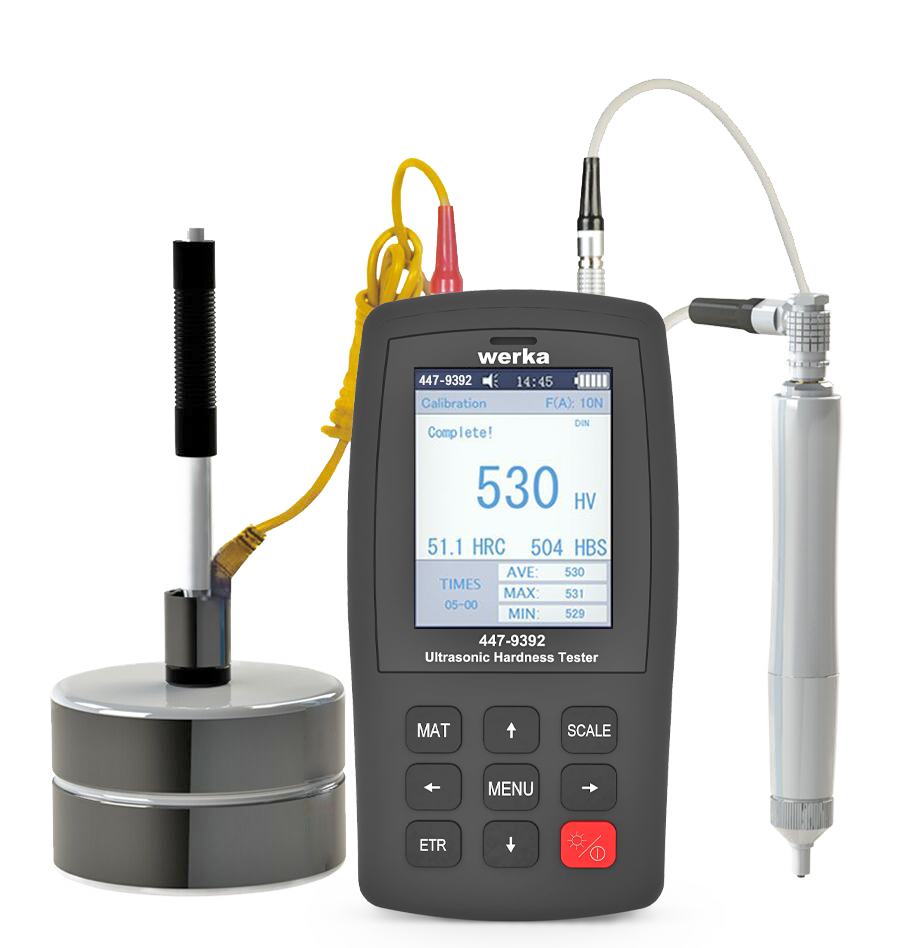

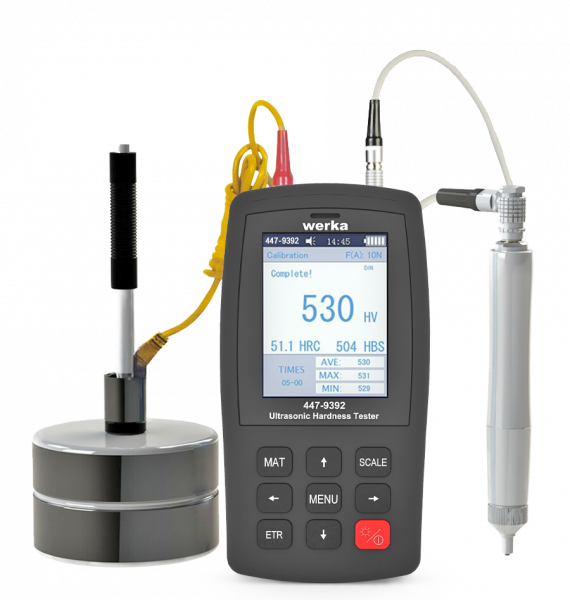

● Ultrasonic hardness tester 447-9392 is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution to test hardness of finished products, such as the mold, gear, shaft, rod, screw, rails, etc.
● very compact size with integrated probe.
● one instrument two applications - Support ultrasonic probe and Leeb impact device.
● metal shell - Metallic texture, shield electromagnetic interference effectively, improve instrument stability.
● color screen display - display the current measurement value accumulative measurement value, Max, Min and Ave value.
● bluetooth transferring - support wireless Bluetooth print and data transferring.
● mass storage: save 1000 groups data.
● calibration access: save 20 groups calibration data without doing calibration for the same material over and over.
Working mode: There are two working modes of thickness measurement: single mode and scan mode
Display: LCD LCD with backlight
Measuring unit: mm/in Resolution: 0.1 mm / 0.01 mm / 0.001inch
Measuring rang: 1 - 300 mm at modul Puls-Echo; 3 - 30 mm at modul Echo-Echo
Accuracy: ±(0.5% n+0.05 mm), depends on materials and conditions
Measurement Period: 4 times per second for single point mode and 10 times per second for scan mode
Sound Velocity: 1000 m/s - 9999 m/s
Data storage: Memory for up to 20 files (99 values for each file) of stored values
Operating Conditions Temperature: 0 - 40 °C Humidity: < 85% RH
Power Supply: 4x1.5 V AAA (UM - 4) Battery
Dimensions: 142x72x34 mm
Weight: 175 g (Not Including Batteries)
1 x Main unit
1 x 2 Kg Manual probe
1 x Impact devices type D
1 x Rockwell hardness block
1 x Leeb hardness block
1 x Probe cable
1 x Accessories Box
1 x USB Cable
1 x Operation Manual
