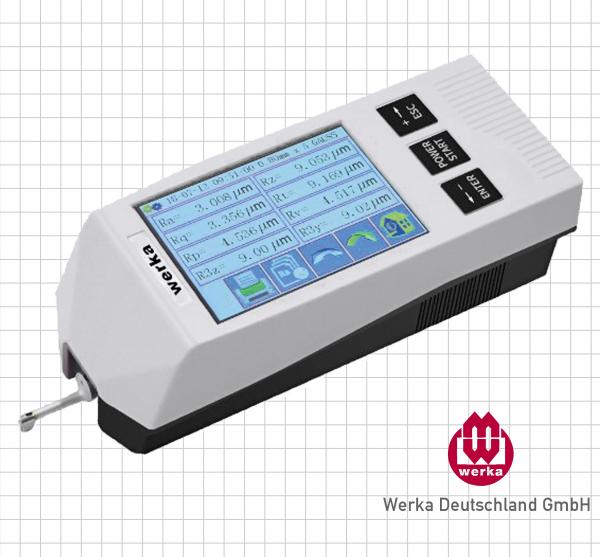

● This hand-held roughness tester is ergonomically designed and a mechanical-electrical integration product, small and light, easy to operate. It is very much applicable for the measurement (e.g. plane, curvature, oblique plane, hole, groove, shaft) on site such as roughness inspection for parts in IQC warehouse, semi-finished products area and workshop etc.

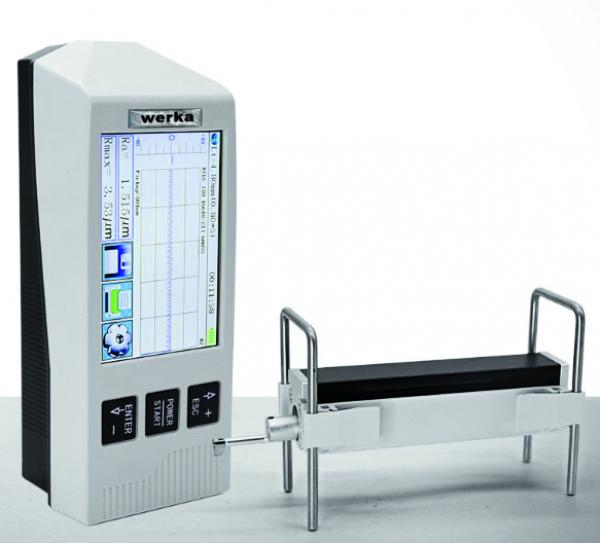

● split design for flexible use with brackets
● measuring range up to 160 μm
● 3.8 in TFT touch screen, clear and direct roughness graphs
● with BT to support wireless connection with smartphone and mini printer
● big data memory, 100 readings and graphic groups record
● auto power off, Premium PCB and software design
| Measuring range: |
Z-axis vertical |
±80μm/±160 μm |
| X-axis horizontal |
20 mm |
| Resolution: |
Z-axis vertical |
0.01μm/±20μm |
| 0.02μm/±40μm |
| 0.04μm/±80μm |
| 0.08μm/±160μm |
| Parameters: |
Z-axis vertical |
Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,
Rmr,Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2 |
| Standards: |
|
ISO,ANSI,DIN,JIS |
| Graphics: |
|
material ratio curve, roughness profile, contour |
| Filters: |
|
RC,PC-RC,Gauss,D-P |
| Sampling length: |
|
0.25, 0.8, 2.5mm |
| Assessment length: |
|
Ln= lr×n,n=1-5 |
| Measuring principle: |
|
differential conductance displacement sensor |
| Contact tip: |
|
diamond, taper 90°,radius of contact tip 5μm |
| Measuring force: |
|
< 4 mN |
| Guide: |
|
carbide, radius of moving direction |
| Moving speed: |
|
lr=0,25, Vt=0,135mm/s |
| lr=0,8, Vt=0,5mm/s |
| lr=2. 5, Vt=1mm/s |
| Return Vt=1mm/s |
| Accuracy error: |
|
<±10% |
| Repeatability: |
|
< 6% |
| Power: |
|
Built-in Li-ion rechargeable battery, Charge |
| Size: |
|
Host : 64 x 53 x 160 mm
Drive: 23 x 27 x 115 mm |
| Operating temperature: |
|
- 20° C - 40° C |
| Storage: |
|
-40° C - 60° C |
| Humidity: |
|
< 90 % RH |
1 x Host
1 x Charger
1 x Drive sensor
1 x Stylus
1 x Probe
1 x Small bracket
1 x Calibration blocks
1 x Operation Manual
1 x Connection Cable
1 x USB cable
1 x Carrying case
