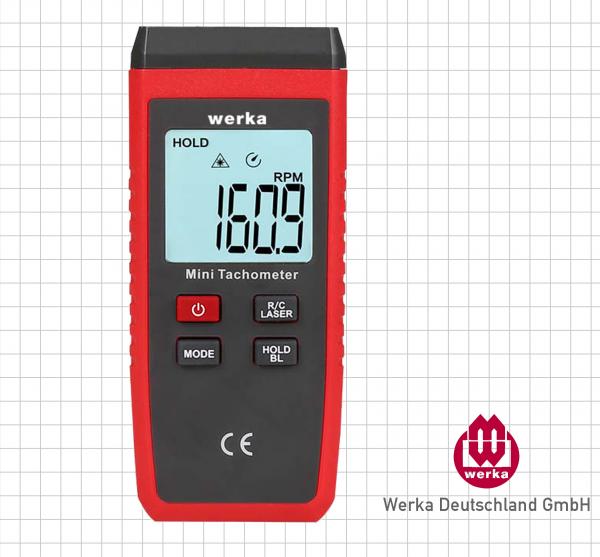

Mini Tachometer is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines.
● LCD backlight
● Auto measuring range
● Up to 99999 display; overload diaplay, "OL"
● RPM measurement and revolution count
● Max/Min, data hold
● Singal trigger/laser-onindication
● refresh rate: 1 s to 7 s (> 120 rpm for 1 s)
● Target distance: 50 - 200 mm
● Measuring angle: ± 30°
● Power: 3 x 1.5 V battery (AAA)
● Low battery/auto power off indication
● Dimension: 183.8 x 56 x 34 mm
● Weight: 85 g (excl. battery)
Range: 10 - 99999 RMP
reading: 10 - 9999.9 RPM: 0.1 RMP; 10000 - 99999 RPM: 1 RMP
Accuracy: 10 - 9999.9 RMP: ± (2 + 0.04% x R); 10000 - 99999 RPM: ± (2 + 0.04% x R)
Counts: 0 - 99999 counts
Reading: 1 counts
Accuracy: ± 1
