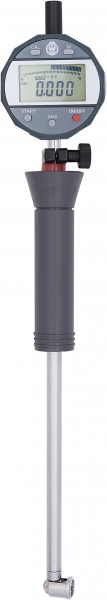

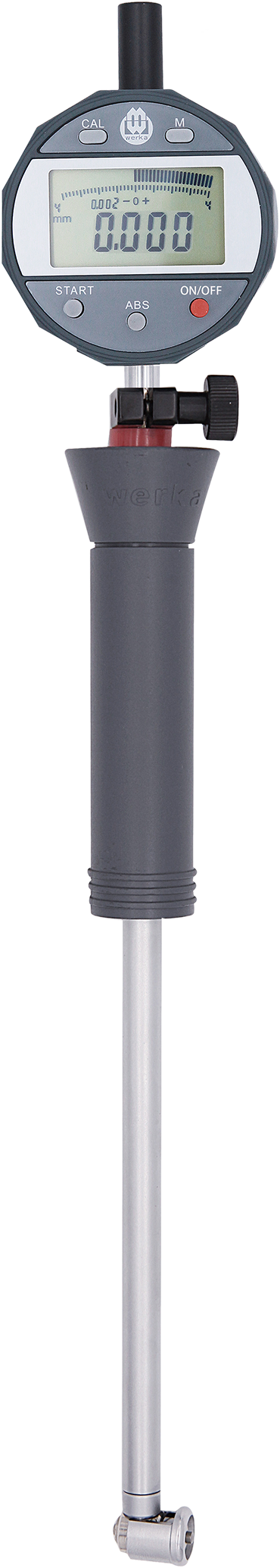

● with digital dial indicator 0 - 12.7 mm
● reading 0.002 mm
● tolerance range setting, deviation judgement
● Max and Min data can be searched and stored
● with USB data output
● absolute and relative measurement, data preset
● buttons: in/mm, ABS, ZERO/ON, T, M
● with inspection certificate
| No. |
Range |
Dial indicator |
Reading |
Measuring depth (L) |
Accuracy |
Repeatability |
| 221-7213 |
6 - 10 mm |
0 - 12.7 mm |
0.002 mm |
40 mm |
± 0.012 mm |
0.003 mm |
| 221-7220 |
10 - 18 mm |
0 - 12.7 mm |
0.002 mm |
100 mm |
± 0.012 mm |
0.003 mm |
| 221-7237 |
18 - 35 mm |
0 - 12.7 mm |
0.002 mm |
150 mm |
± 0.012 mm |
0.003 mm |
| 221-7244 |
35 - 50 mm |
0 - 12.7 mm |
0.002 mm |
150 mm |
± 0.012 mm |
0.003 mm |
| 221-7251 |
50 - 160 mm |
0 - 12.7 mm |
0.002 mm |
150 mm |
± 0.012 mm |
0.003 mm |
